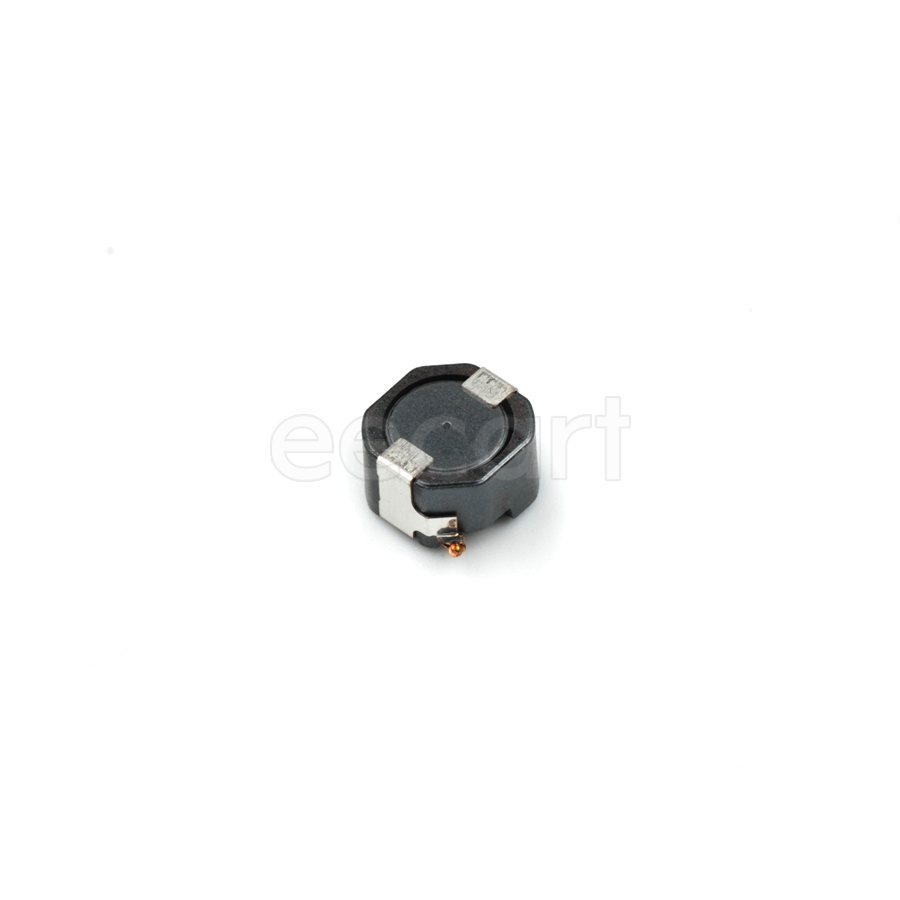

CLF7045T-3R3N-D
Manufacturer:
TDK Corporation
Mfr.Part #:
CLF7045T-3R3N-D
Datasheet:
Description:
Fixed Inductors SMD,7.20mm×6.90mm×4.50mm SMD/SMT 3.3 µH 30 % 4.1 A 16.4 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 4.5 mm |
| Length | 7.2 mm |
| Width | 6.9088 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 4.5 mm |
| Packaging | Reel |
| Depth | 6.9 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 100 kHz |
| Current Rating | 4.1 A |
| DC Resistance (DCR) | 16.4 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Shielding | Shielded |
| Inductance | 3.3 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 4.1 A |
| inductance tolerance | 30 % |
| Max DC Current | 5 A |
| Saturation Current | 5 A |
| Type | Wirewound |
Stock: 4786
Distributors
pcbx
pcbxUnit Price$0.59417
Ext.Price$0.59417
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.59417 | $0.59417 |
| 10 | $0.45567 | $4.55670 |
| 25 | $0.42832 | $10.70800 |
| 50 | $0.41618 | $20.80900 |
| 100 | $0.40438 | $40.43800 |
| 300 | $0.37787 | $113.36100 |
| 500 | $0.35309 | $176.54500 |
| 1000 | $0.33940 | $339.40000 |
| 3000 | $0.32365 | $970.95000 |
| 5000 | $0.30863 | $1543.15000 |
